What is Line Straightness of chrome on glass and ceramic target?
The line straightness of two plates are compared. One plate is made of glass with chrome pattern. Another one is made of ceramic. An industrial camera system, i.e., 20Mega pixel camera with a telecentric lens, are used to capture images of both plates.
General computational Logic is as below:
- Find circle edge points from dark-to-bright transission;
- A best-fit circle is found based on edge points;
- Distances of actual edge points to their ideal edge locations are calculated;
- For a same circle, circularity value can be deduced absed on these distances;
Comparison Experiment
Line Straightness Analysis of Chrome on Glass and Ceramic

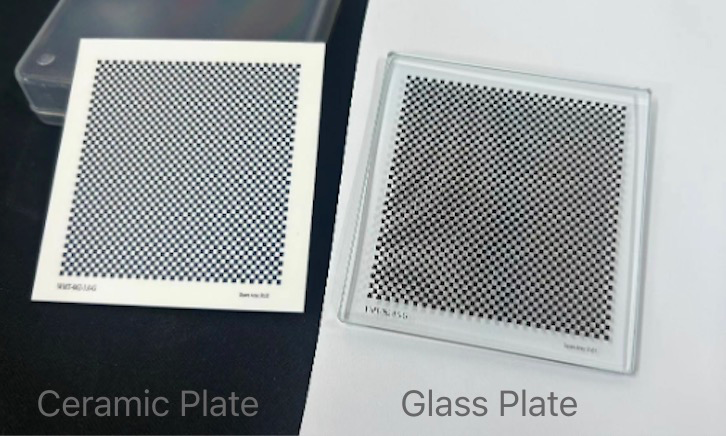

To compare the line straightness in two plates, one is ceramic, the other one is glass.

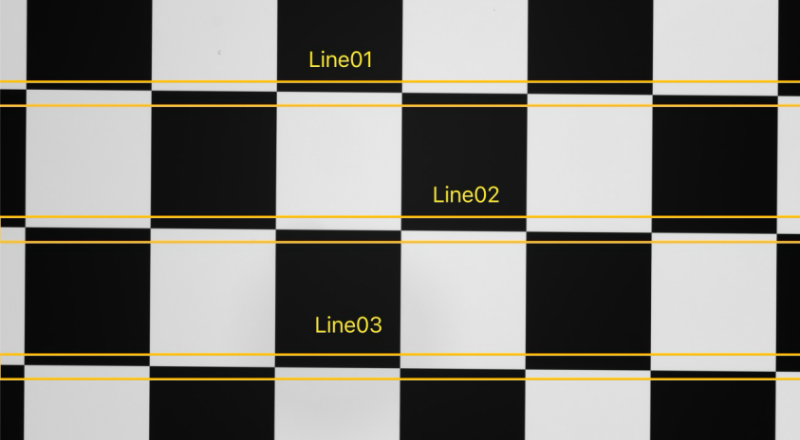

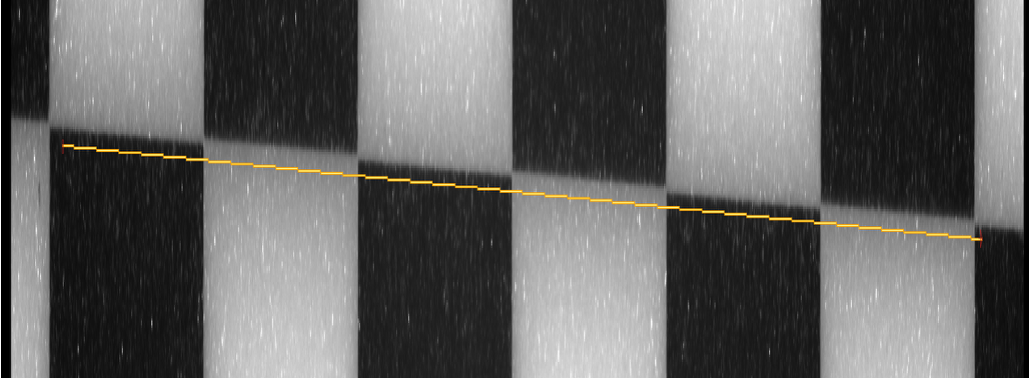

Left: original image from chrome on glass;

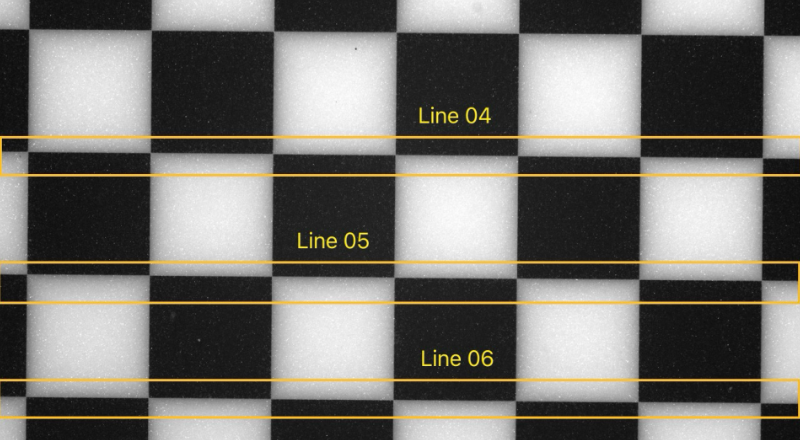

Right: original image from chrome on ceramic.

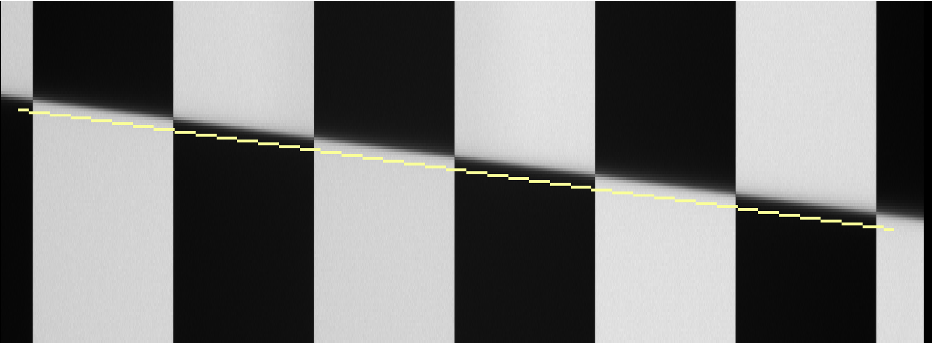

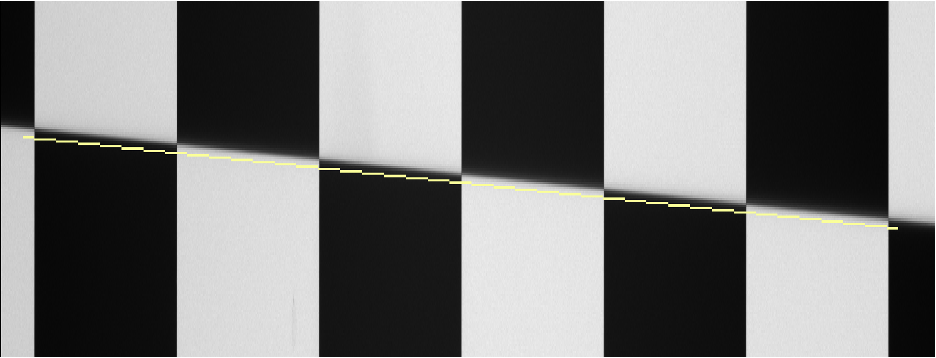

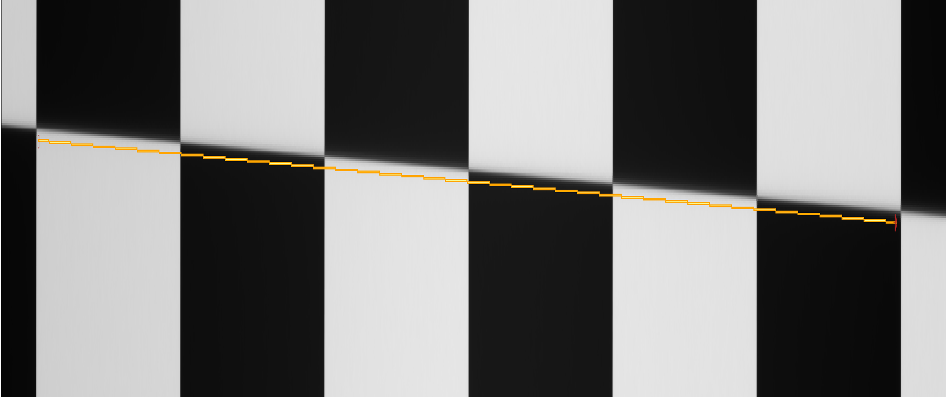

| Straightness Results - Chrome on Glass Calibration Target | ||
|---|---|---|
| Line 01/μm | Line 02/μm | Line 03/μm |
| 0.228517342 | 0.540891238 | 0.223037466 |
|
|
|

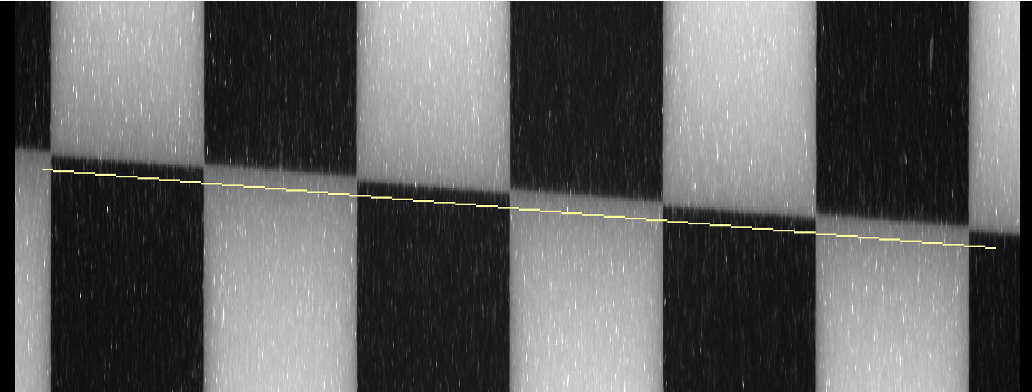

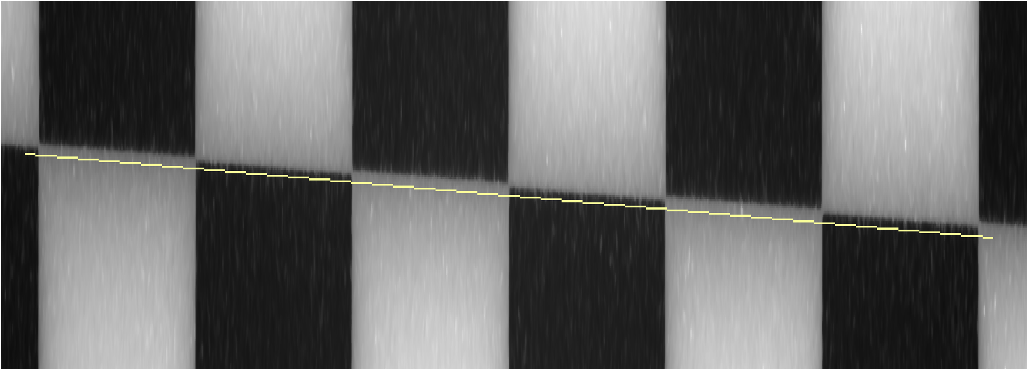

| Straightness Results - Chrome on Ceramic Calibration Target | ||
|---|---|---|
| Line 01/μm | Line 02/μm | Line 03/μm |
| 5.81125129 | 5.659593307 | 6.758464655 |
|
|
|
Analysis Conclusion
Figure 1: Distance Tolerance of Chrome on Glass Plate/μm

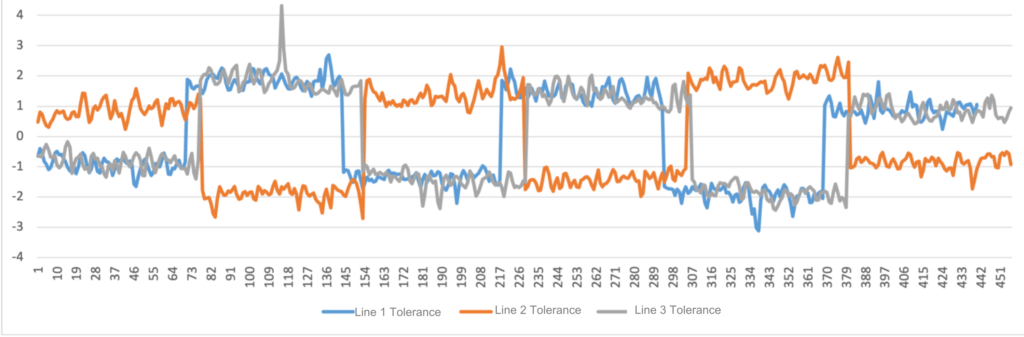

Figure 2: Distance Tolerance of Chrome on Ceramic Plate/μm
Testing Data
Glass Plate Line Straightness
edge points to its best-fit line/μm
edge points to its best-fit line/μm
