Price range: $298.00 through $498.00
Exact HALCON geometry — artwork generated straight from the official calplate description (.cpd) files, so the plate matches HALCON’s calibration data precisely
Circular marks + 5 finder patterns — the standard HALCON layout, read directly by HALCON’s calibration operators
Three substrates, one standard of precision — soda-lime glass (±1µm), quartz glass (±0.5µm), matte ceramic (±2µm)

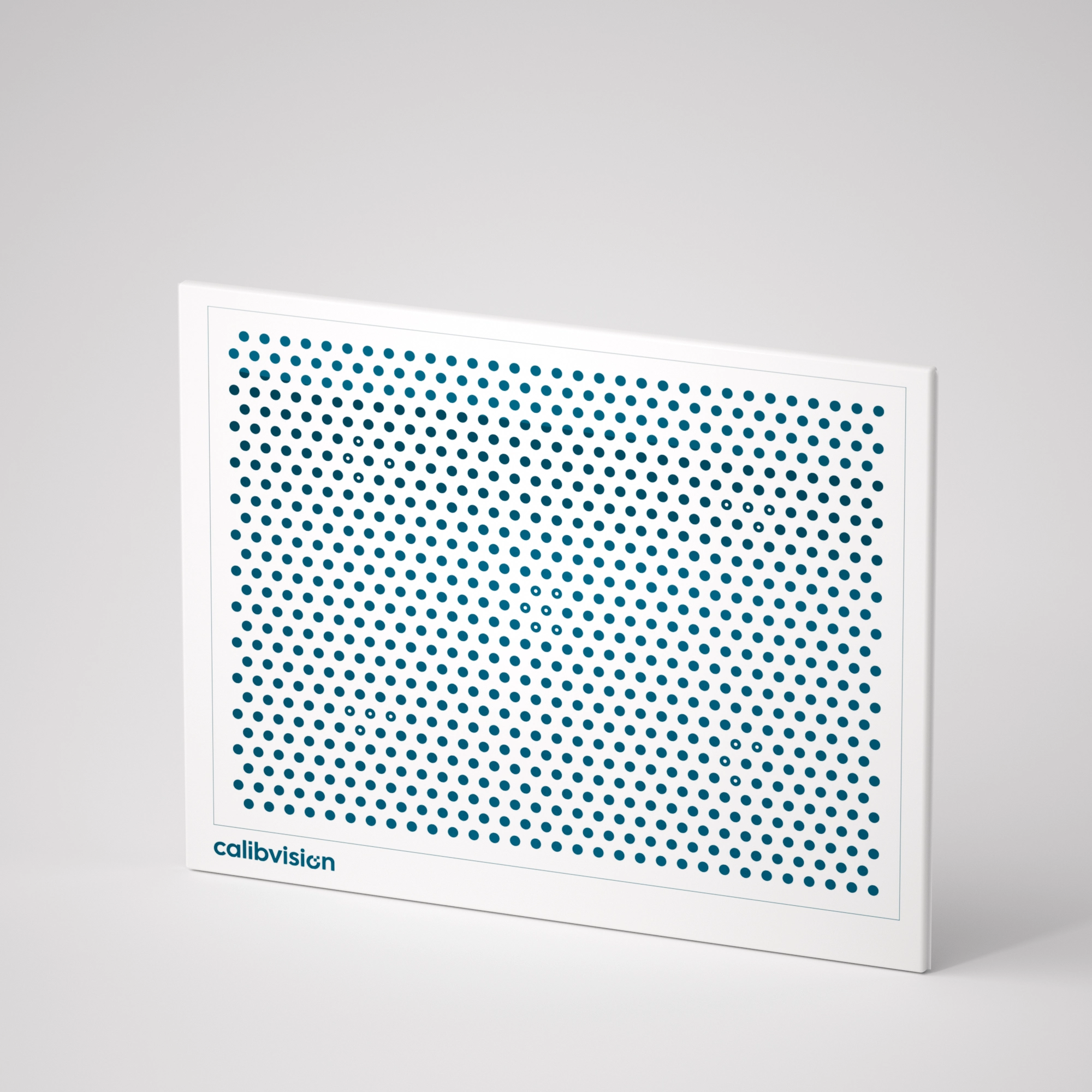

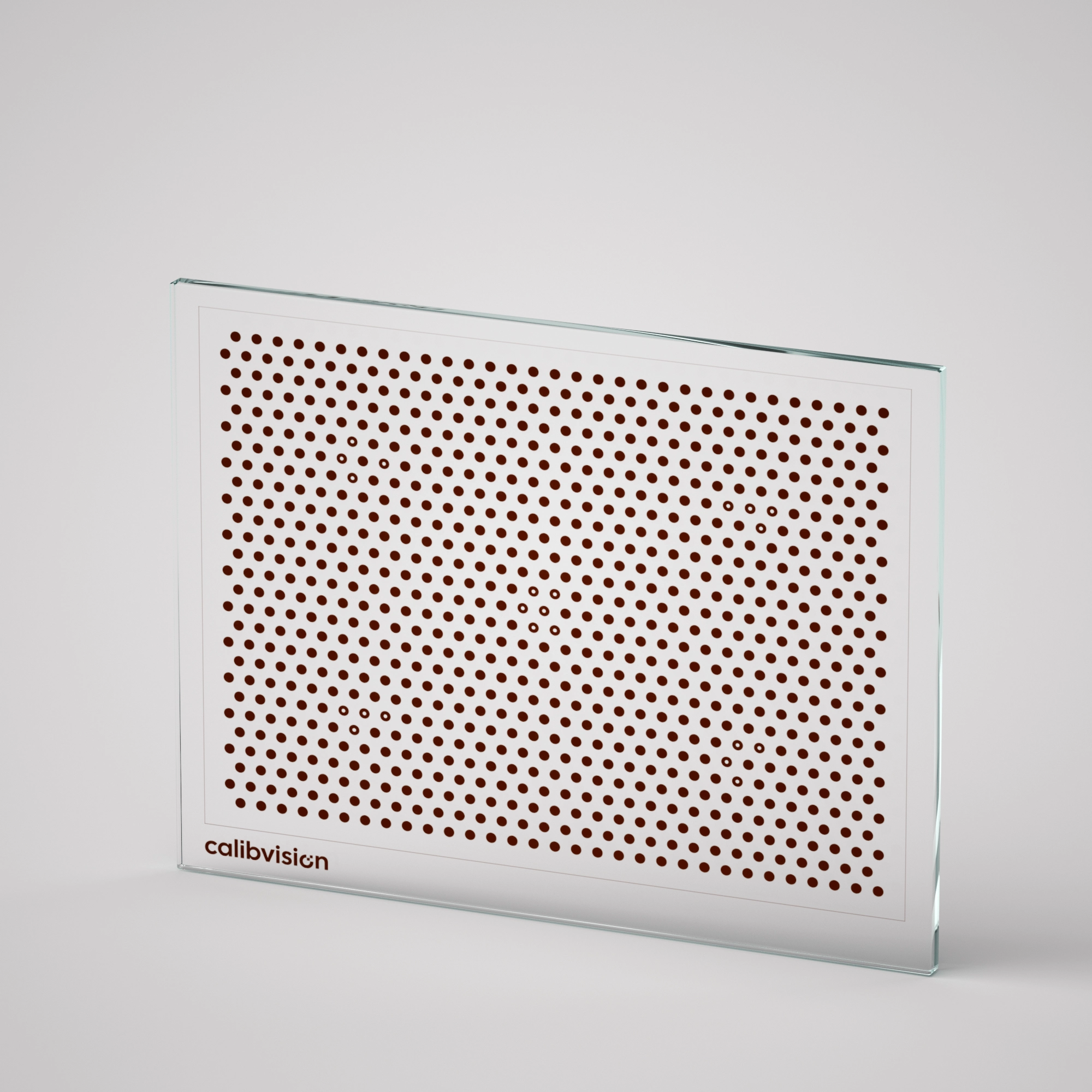

Backlit or front-lit — glass for transmissive backlight, ceramic for incident-light use
Full standard size range — HALCON calplate 5 mm to 1200 mm; the 80 mm plate in stock
White-label / OEM — supplied blank or with your own branding and part number
Traceable on request — per-unit measurement data; CNAS-accredited (L0579), NIST & NIM traceable
The HALCON calibration plate is a regular array of circular marks with five finder patterns — the layout MVTec HALCON expects from its standard calibration objects. Rather than approximate that pattern, we generate the artwork directly from the official HALCON calplate description file, so the mark count, spacing, finder positions and polarity match your calibration data exactly. When HALCON reads the plate, the geometry it finds is the geometry it was built to.
The same plate is offered on three substrates so it fits how you actually light it. Glass is transmissive for backlight; ceramic is built for incident (front) lighting. Surface finish is a trade-off you can choose around: a diffuse surface performs more consistently across lighting conditions, while a polished surface gives the best flatness and the cleanest edge extraction during image processing — and for many setups a balance of the two is the best path. Whichever you pick, every plate ships inspected, with traceable certification available, and can be supplied blank or white-labeled with your own branding.
